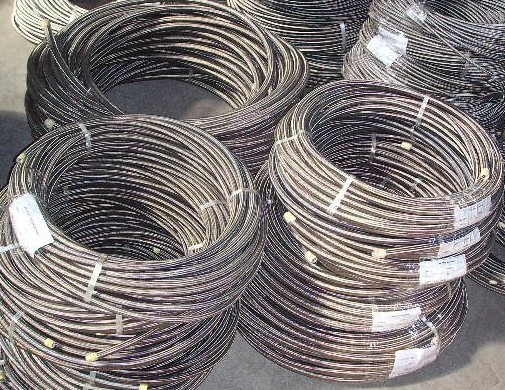

Stainless Steel Braided PTFE Hose (conductive core)

Chemical Resistant PTFE is virtually unaffected to practically all commercial chemicals, acids, alcohols, coolants, elastomers, hydrocarbons, solvents, synthetic compounds and hydraulic fluids. Temperature Resistant It can handle it all, from cryogenics to steam all in one hose. Temperature range is from -65¡ F to 450¡ F High Flow Rates & Low Friction Due to the anti-stick properties of the Teflon¨ you will not experience low pressure drops from accumulate deposits on the inner core. Easy to clean permitting use of one hose for several services. Flexible & Lightweight Easier to move, handle and install than rubber hose with a comparable burst pressure rating. Withstands continuous flexing and vibration without failure from flex fatigue. Moisture Resistant No moisture absorption, ideal as a pigtail in bulk gas handling and pneumatic systems where a low dew point is critical. Non-Adhesive Handles substances such as adhesives, asphalt,dyes, greases, glue, latex, lacquers and paints with ease. Chemically Inert Will not break down or deteriorate in service. Non-Aging Impervious to weather and can be stored for extended periods of time without aging. It will not age during service. Shock Resistant Not affected by continuous flexing,vibration or impulse pressures - withstands alternating hot and cold cycling. Polytetrafluoroethylene is an engineered fluoropolymer commonly known by DuPont's trade name "Teflon". Outstanding resistance to chemicals is one of it's primary attributes. A broad temperature range of -100F to 500F (-73C to 260C) make this hose material suitable for the majority of fluid and ambient temperature conditions found in industry. An extremely low coefficient of friction, (0.05 to 0.20), provides a non-stick surface. Water absorption of PTFE is negligible, less than 0.01% by ASTM test. And, it is FDA-approved for food and pharmaceutical use. Smooth Bore PTFE "Teflon" inner core Hose Inner core vertically extruded to maintain highest quality concentricity. Manufactured from DuPont's type 62 fine grade resin. 304 stainless steel wire braid reinforcement. An exact amount of carbon black added to the PTFE inner core provides continuous conductive path to the metal end fittings, to bleed off static electricity in steam or high flow rate applications. For continuous service: -65¡F to 450¡F (-54¡C to 232¡C) For intermittent service: -100¡F to 500¡F (-73¡C to 260¡C) Meets or exceeds requirements of SAE 100R14 PTFE meets FDA 21 CCFR 177.1550 Sizes -4 thru -10 are rated for full vacuum.

-6 Size Stainless Steel Braided Teflon® Hose (5' length)

$37.95
SKU: T-620006-SSBK-10

-6 Stainless Steel Braided Teflon® Hose

(5 foot length)



Hose Size: *3/8
Average I.D.: .312
Average O.D.: .445
Operating Pressure: 2500
Burst Pressure: 10000
Bend Radius (inches): 4

$37.95

-6 Size Stainless Steel Braided Teflon® Hose (20' length)

$151.80



-6 Stainless Steel Braided Teflon® Hose

(20 foot length)



Hose Size: *3/8
Average I.D.: .312
Average O.D.: .445
Operating Pressure: 2500
Burst Pressure: 10000
Bend Radius (inches): 4



Made in USA.

$151.80

-8 Stainless Steel Braided Teflon® Hose (20' length)

$191.80

-8 Stainless Steel braided Teflon® Hose

(20 foot length)



Hose Size: *1/2
Average I.D.: .405
Average O.D.: .549
Operating Pressure: 2000
Burst Pressure: 8000
Bend Radius (inches): 5.2

$191.80

-10 Stainless Steel braided Teflon® Hose (20' length)

$251.80

-10 Stainless Steel braided Teflon® Hose

(20 foot length)

We're proud to be the 1st company to offer a complete selection of the new -10 sizes.  Everybody wants 'em, nobody's got 'em, except TechAFX!



Hose Size: 5/8
Average I.D.: .500
Average O.D.: .648
Operating Pressure: 1500
Burst Pressure: 6000
Bend Radius (inches): 6.5



Made in U.S.A.

$251.80

-10 Stainless Steel braided Teflon® Hose (10' length)

$125.90

-10 Stainless Steel braided Teflon® Hose

(10 foot length)

We're proud to be the 1st company to offer a complete selection of the new -10 sizes.  Everybody wants 'em, nobody's got 'em, except TechAFX!



Hose Size: 5/8
Average I.D.: .500
Average O.D.: .648
Operating Pressure: 1500
Burst Pressure: 6000
Bend Radius (inches): 6.5



Made in U.S.A.

$125.90

-8 Stainless Steel Braided Teflon® Hose (10' length)

$95.90

-8 Stainless Steel braided Teflon® Hose

(10 foot length)



Hose Size: *1/2
Average I.D.: .405
Average O.D.: .549
Operating Pressure: 2000
Burst Pressure: 8000
Bend Radius (inches): 5.2

$95.90

-6 Size Stainless Steel Braided Teflon® Hose (10' length)

$75.90

-6 Stainless Steel Braided Teflon® Hose

(10 foot length)



Hose Size: *3/8
Average I.D.: .312
Average O.D.: .445
Operating Pressure: 2500
Burst Pressure: 10000
Bend Radius (inches): 4

$75.90
